TYPE-CD
TYPE-CD
Detailed Information by Type
Type name: TYPE-CD
Spray shape: Full cone
Spray direction: angled
Mounting screw： 1/2", 3/4" female screw
Material: PP (Polypropylene)
Applications: Ideal for cooling, cleaning, sprinkling and foam suppression. Also suitable for humidification.
Features
Developed as a high water volume version of Type-AS, it has a built-in cross vane to create a swirling flow just before the spray port, just like AS. Please be careful to avoid clogging. The spray angle is relatively small and the mist particles are coarser and larger than those of hollow cones, making it ideal for cleaning, cooling, water sprinkling, foam extinguishing, etc.
Combinations
There are three types of bodies, with "TYPE-CD" stamped on the back and a symbol indicating the body orifice diameter in the circle above it, where Q indicates φ7 mm, R = φ8 mm, and T = φ10 mm. There are three types of atomizing orifice, with a "D" stamped on the cap and a number indicating the orifice diameter, with 60 indicating φ6 mm, 80 = φ8 mm, and 100 = φ10 mm. Various spray angles and water volumes can be obtained by combining these bodies and caps.
Type name: TYPE-CD
Spray shape: Full cone
Spray direction: angled
Mounting screw： 1/2", 3/4" female screw
Material: PP (Polypropylene)
Applications: Ideal for cooling, cleaning, sprinkling and foam suppression. Also suitable for humidification.
Features
Developed as a high water volume version of Type-AS, it has a built-in cross vane to create a swirling flow just before the spray port, just like AS. Please be careful to avoid clogging. The spray angle is relatively small and the mist particles are coarser and larger than those of hollow cones, making it ideal for cleaning, cooling, water sprinkling, foam extinguishing, etc.
Combinations
There are three types of bodies, with "TYPE-CD" stamped on the back and a symbol indicating the body orifice diameter in the circle above it, where Q indicates φ7 mm, R = φ8 mm, and T = φ10 mm. There are three types of atomizing orifice, with a "D" stamped on the cap and a number indicating the orifice diameter, with 60 indicating φ6 mm, 80 = φ8 mm, and 100 = φ10 mm. Various spray angles and water volumes can be obtained by combining these bodies and caps.
If you would like more than the maximum quantity, please click here.
If you would like more than the maximum quantity, please click here.
Please Contact us.
If you wish to use a shipping method other than EMS
If you wish to use a shipping method other than EMS
If you would like to use a shipping method other than EMS, please Contact Us.
Worldwide Shipping
Worldwide Shipping
In addition to the shipping fee, customs duties and customs clearance fees may apply, and these additional costs must be borne by the customer.

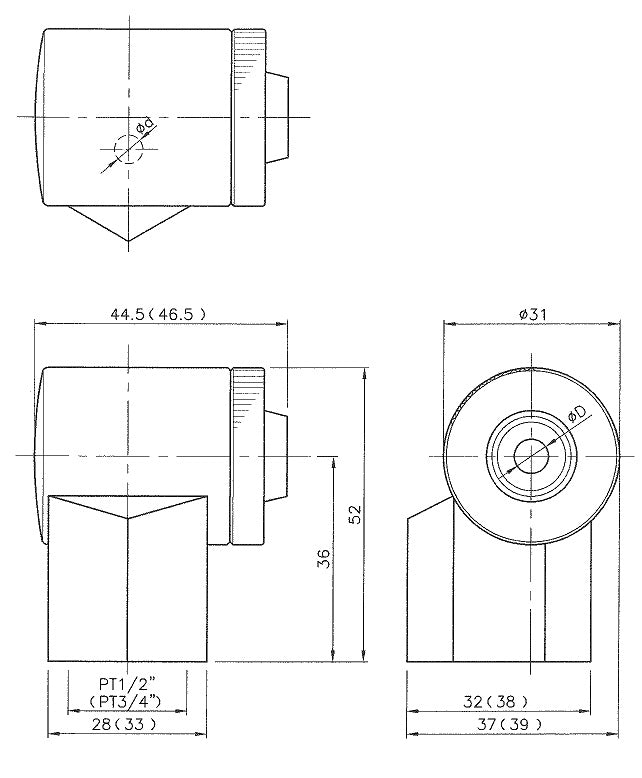

Performance & Dimension
＊Dimension : general tolerancen
＊Performance : All figures in above table are based on actual value tested, but not guaranteed.
※ The numbers in parentheses in the body symbol column indicate the diameter of the body orifice.
※Explanation of model designation: CD-6Q is a type of CD, which refers to the combination of a cap with a spray diameter of 6 mm and a body with a body orifice diameter of Q (= 7 mm).
