TYPE-CDH
TYPE-CDH
Detailed Information by Type
Type name： TYPE-CDH
Spray shape: Hollow cone
Spray direction: angled
Mounting screw： 1/2",3/4" female screw
Material: PP (polypropylene)
Applications: Ideal for cooling, humidification, foam suppression. Also suitable for air cleaning, air washers, scrubbers, etc.
Features
Developed for larger water flow than the F, NF, and NFB types, it is positioned as an enlarged version of the NF and is available in two mounting thread sizes: 1/2" and 3/4". The body orifice is located in the center of the mounting screw like the NF and NFB, and in addition to being rounded, both the body orifice and spray port have large openings to prevent clogging. It is best suited for cooling, humidifying, and foam elimination in large water volumes.
Combination
The same body as the full cone type CD is used, so the only marking on the body is "TYPE-CD. There are four types of body with 1/2" mounting screw size and three types with 3/4" screw size, and the symbols indicating the body orifice diameter are written in the circle of the engraving. = φ10mm. There are four types of atomizing ports. The cap part is stamped with "H-" and a number in a circle indicating the diameter, which is φ10mm, φ12mm, φ14mm, and φ16mm as it is. Various spray angles and water volumes can be obtained by combining these bodies and caps.
Type name： TYPE-CDH
Spray shape: Hollow cone
Spray direction: angled
Mounting screw： 1/2",3/4" female screw
Material: PP (polypropylene)
Applications: Ideal for cooling, humidification, foam suppression. Also suitable for air cleaning, air washers, scrubbers, etc.
Features
Developed for larger water flow than the F, NF, and NFB types, it is positioned as an enlarged version of the NF and is available in two mounting thread sizes: 1/2" and 3/4". The body orifice is located in the center of the mounting screw like the NF and NFB, and in addition to being rounded, both the body orifice and spray port have large openings to prevent clogging. It is best suited for cooling, humidifying, and foam elimination in large water volumes.
Combination
The same body as the full cone type CD is used, so the only marking on the body is "TYPE-CD. There are four types of body with 1/2" mounting screw size and three types with 3/4" screw size, and the symbols indicating the body orifice diameter are written in the circle of the engraving. = φ10mm. There are four types of atomizing ports. The cap part is stamped with "H-" and a number in a circle indicating the diameter, which is φ10mm, φ12mm, φ14mm, and φ16mm as it is. Various spray angles and water volumes can be obtained by combining these bodies and caps.
If you would like more than the maximum quantity, please click here.
If you would like more than the maximum quantity, please click here.
Please Contact us.
If you wish to use a shipping method other than EMS
If you wish to use a shipping method other than EMS
If you would like to use a shipping method other than EMS, please Contact Us.
Worldwide Shipping
Worldwide Shipping
In addition to the shipping fee, customs duties and customs clearance fees may apply, and these additional costs must be borne by the customer.

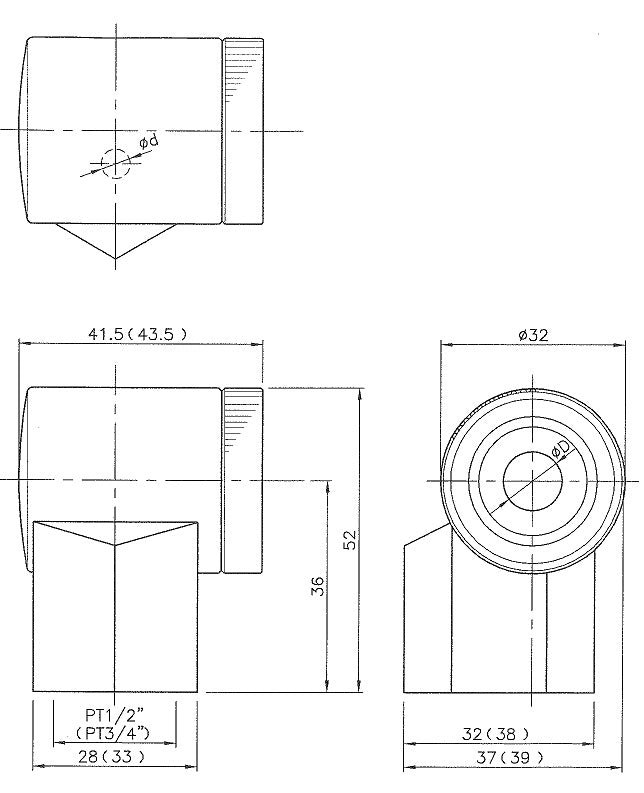

Performance & Dimension
＊Dimension: general tolerance
＊Performance: All figures in the above table are based on actual values tested, but not guaranteed.
※The numbers in parentheses in the body code column indicate the body orifice diameter.
※Model name explanation: CDH-10N is a type-CDH, and represents a combination of a cap with a spray diameter of Φ10mm and a body with a body orifice diameter N (=Φ5mm).
