TYPE-FF
TYPE-FF
Detailed Information by Type
Type name： TYPE-FF
Spray shape: Flat
Spray direction: 45° forward at an angle
Mounting screw: 3/8" female thread
Material: PP (Polypropylene)
Application: Ideal for water sprinkling. Also suitable for cleaning and foam suppression.
Features
Flat spray with almost semi-circular spray. The wide spray angle makes it ideal for water sprinkling. Impact force can be used for spraying with a large spray port.
Specifications
No combination is required since it is an integrated type. TYPE-FF" is stamped on the apex of the body. There is no stamp indicating the spraying diameter, but there are six types: φ2mm, φ3mm, φ4mm, φ5mm, φ6mm, and φ7mm.
Type name： TYPE-FF
Spray shape: Flat
Spray direction: 45° forward at an angle
Mounting screw: 3/8" female thread
Material: PP (Polypropylene)
Application: Ideal for water sprinkling. Also suitable for cleaning and foam suppression.
Features
Flat spray with almost semi-circular spray. The wide spray angle makes it ideal for water sprinkling. Impact force can be used for spraying with a large spray port.
Specifications
No combination is required since it is an integrated type. TYPE-FF" is stamped on the apex of the body. There is no stamp indicating the spraying diameter, but there are six types: φ2mm, φ3mm, φ4mm, φ5mm, φ6mm, and φ7mm.
If you would like more than the maximum quantity, please click here.
If you would like more than the maximum quantity, please click here.
Please Contact us.
If you wish to use a shipping method other than EMS
If you wish to use a shipping method other than EMS
If you would like to use a shipping method other than EMS, please Contact Us.
Worldwide Shipping
Worldwide Shipping
In addition to the shipping fee, customs duties and customs clearance fees may apply, and these additional costs must be borne by the customer.
Performance & Dimension

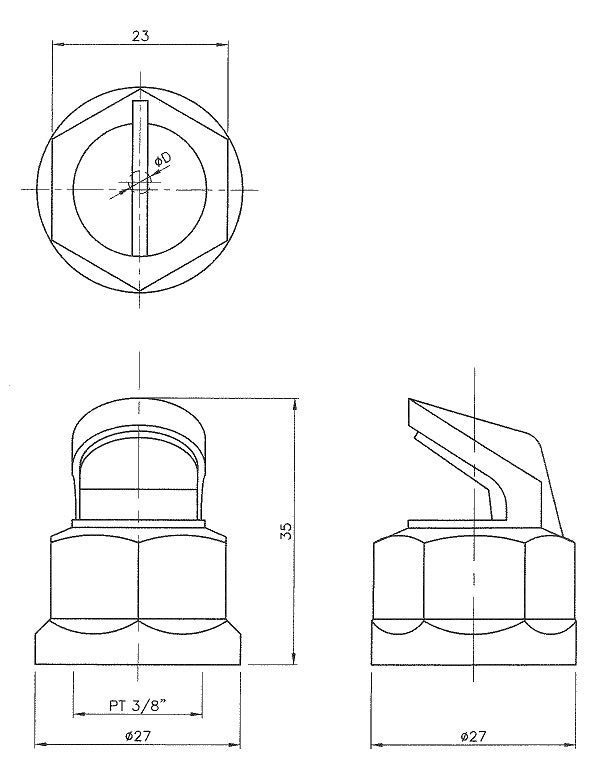

＊Dimension : general tolerancen
＊Performance : All figures in above table are based on actual value tested, but not guaranteed.
※Model designation: FF-2x stands for Type-FF with a spray bore of Φ2mm.
