TYPE-FMS
TYPE-FMS
Detailed Information by Type
Type name： TYPE-FMS
Spray shape: Flat
Spray direction: straight
Mounting screw: 1/8" male thread
Material: PP (Polypropylene)
Applications: Suitable for washing and sprinkling water. Also suitable for foam suppression.
Features
Originally developed for the water sprinkler system of automatic car wash machines, it is now in demand for a wide variety of applications because of its ability to produce a firm spray with a small amount of water. The King nozzle is the only male thread type. The integrated type produces a fine mist. Ideal for cleaning and sprinkling water. The large atomizing nozzle can also use impact force.
Specifications
No combination is available as they are all-in-one type.
Four types are available, each with a different atomizing port diameter. The atomizing port is marked with "FMS" and a number indicating the atomizing port diameter (φ2mm, φ3mm, φ4mm, and φ5mm).
Type name： TYPE-FMS
Spray shape: Flat
Spray direction: straight
Mounting screw: 1/8" male thread
Material: PP (Polypropylene)
Applications: Suitable for washing and sprinkling water. Also suitable for foam suppression.
Features
Originally developed for the water sprinkler system of automatic car wash machines, it is now in demand for a wide variety of applications because of its ability to produce a firm spray with a small amount of water. The King nozzle is the only male thread type. The integrated type produces a fine mist. Ideal for cleaning and sprinkling water. The large atomizing nozzle can also use impact force.
Specifications
No combination is available as they are all-in-one type.
Four types are available, each with a different atomizing port diameter. The atomizing port is marked with "FMS" and a number indicating the atomizing port diameter (φ2mm, φ3mm, φ4mm, and φ5mm).
If you would like more than the maximum quantity, please click here.
If you would like more than the maximum quantity, please click here.
Please Contact us.
If you wish to use a shipping method other than EMS
If you wish to use a shipping method other than EMS
If you would like to use a shipping method other than EMS, please Contact Us.
Worldwide Shipping
Worldwide Shipping
In addition to the shipping fee, customs duties and customs clearance fees may apply, and these additional costs must be borne by the customer.

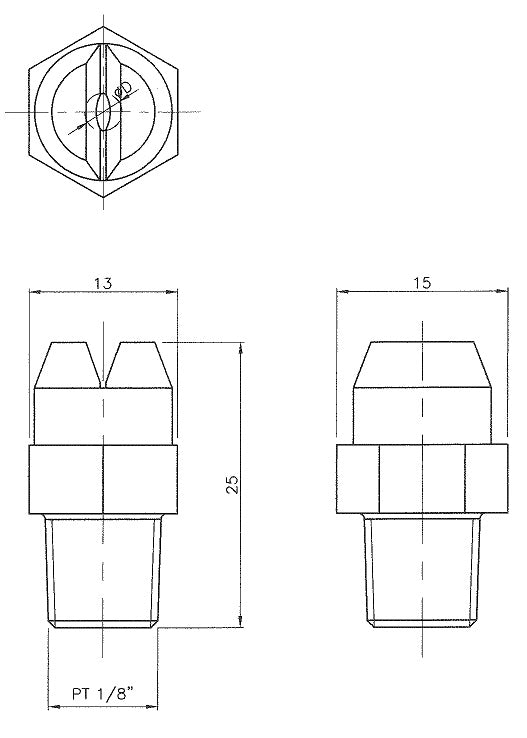

Performance & Dimension
＊Dimension : general tolerancen
＊Performance : All figures in above table are based on actual value tested, but not guaranteed.
※Model designation: FMS-2X stands for Type-FMS with a spray diameter of Φ2mm.
