Detailed Information by Type
Type name： TYPE-NFB
Spray shape: Hollow cone
Spray direction: angled
Mounting screw： 3/8" female thread
Material: PP (Polypropylene)
Applications: Ideal for cooling and humidifying. Also suitable for air cleaning, air washers, scrubbers, etc., and foam suppression in sewage treatment plants.
Features
Shared body with Type-NF. The body orifice is located at the center of the mounting screw, and is angled for smooth water introduction. The cap's orifice is also angled so that it sprays at a wider angle. The smooth water conduction ensures stable spraying and, like the Type-NF, minimizes clogging. Like the Type-F and NF, it produces a relatively fine mist among King nozzles, making it ideal for cooling and humidifying.
Combination
There are three types of bodies, with "TYPE-NF" stamped on the back and a symbol indicating the body orifice diameter in the circle above it, where L indicates φ3 mm, M = φ4 mm, and Q = φ7 mm. There are six types of atomizing orifice, and a number representing the orifice diameter is written in a circle on the cap portion, indicating as it is 50 = φ5 mm, 60 = φ6 mm, 70 = φ7 mm, 80 = φ8 mm, and 90 = φ9 mm. Various spray angles and water volumes can be obtained by combining these bodies and caps.
Type name： TYPE-NFB
Spray shape: Hollow cone
Spray direction: angled
Mounting screw： 3/8" female thread
Material: PP (Polypropylene)
Applications: Ideal for cooling and humidifying. Also suitable for air cleaning, air washers, scrubbers, etc., and foam suppression in sewage treatment plants.
Features
Shared body with Type-NF. The body orifice is located at the center of the mounting screw, and is angled for smooth water introduction. The cap's orifice is also angled so that it sprays at a wider angle. The smooth water conduction ensures stable spraying and, like the Type-NF, minimizes clogging. Like the Type-F and NF, it produces a relatively fine mist among King nozzles, making it ideal for cooling and humidifying.
Combination
There are three types of bodies, with "TYPE-NF" stamped on the back and a symbol indicating the body orifice diameter in the circle above it, where L indicates φ3 mm, M = φ4 mm, and Q = φ7 mm. There are six types of atomizing orifice, and a number representing the orifice diameter is written in a circle on the cap portion, indicating as it is 50 = φ5 mm, 60 = φ6 mm, 70 = φ7 mm, 80 = φ8 mm, and 90 = φ9 mm. Various spray angles and water volumes can be obtained by combining these bodies and caps.
If you would like more than the maximum quantity, please click here.
If you would like more than the maximum quantity, please click here.
Please Contact us.
If you wish to use a shipping method other than EMS
If you wish to use a shipping method other than EMS
If you would like to use a shipping method other than EMS, please Contact Us.
Worldwide Shipping
Worldwide Shipping
In addition to the shipping fee, customs duties and customs clearance fees may apply, and these additional costs must be borne by the customer.

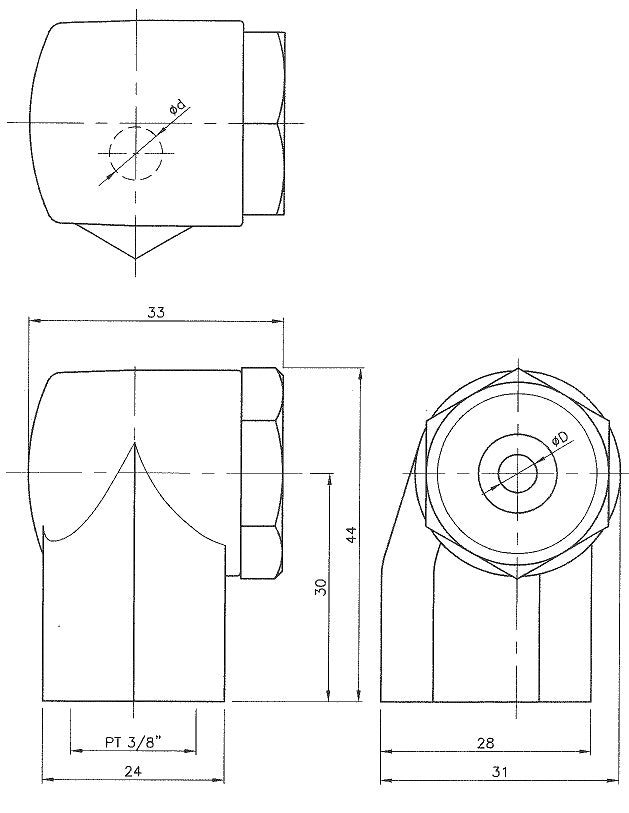

Performance & Dimension
*Dimension : general tolerance
*Performance : All figures in the above table are based on actual value tested, but not guaranteed.
※NFB-3M means Type-NFB, which is a combination of a cap with a 3mm atomizing diameter and a body with a body orifice diameter of M (= 4mm).
