TYPE-S
TYPE-S
Detailed Information by Type
Type name： TYPE-S
Spray shape: Full cone
Spray direction: straight
Mounting screw： 3/8" female thread
Material: PP (Polypropylene)
Applications: Suitable for cleaning, cooling, sprinkling and foam suppression. Also suitable for humidification.
Features
Full cone type with the same direction as the mounting pipe. A cross vane is built in just before the spray port to create a swirling flow. Please be careful of clogging. The spray angle is relatively small and the mist particles are coarser and larger than those of hollow cones, so impact force can be used, especially at small spray angles. It is suitable for washing, cooling, water sprinkling, foam extinguishing, as well as for washing off.
Combination
The body has no orifice and is therefore unmarked. There are four types of spray orifices, with "S" stamped on the cap and a number indicating the diameter of the spray orifice: 20 indicates φ2 mm, 30 = φ3 mm, 40 = φ4 mm, and 60 = φ6 mm. The spray angle and water volume vary depending on the size of the spray port.
Type name： TYPE-S
Spray shape: Full cone
Spray direction: straight
Mounting screw： 3/8" female thread
Material: PP (Polypropylene)
Applications: Suitable for cleaning, cooling, sprinkling and foam suppression. Also suitable for humidification.
Features
Full cone type with the same direction as the mounting pipe. A cross vane is built in just before the spray port to create a swirling flow. Please be careful of clogging. The spray angle is relatively small and the mist particles are coarser and larger than those of hollow cones, so impact force can be used, especially at small spray angles. It is suitable for washing, cooling, water sprinkling, foam extinguishing, as well as for washing off.
Combination
The body has no orifice and is therefore unmarked. There are four types of spray orifices, with "S" stamped on the cap and a number indicating the diameter of the spray orifice: 20 indicates φ2 mm, 30 = φ3 mm, 40 = φ4 mm, and 60 = φ6 mm. The spray angle and water volume vary depending on the size of the spray port.
If you would like more than the maximum quantity, please click here.
If you would like more than the maximum quantity, please click here.
Please Contact us.
If you wish to use a shipping method other than EMS
If you wish to use a shipping method other than EMS
If you would like to use a shipping method other than EMS, please Contact Us.
Worldwide Shipping
Worldwide Shipping
In addition to the shipping fee, customs duties and customs clearance fees may apply, and these additional costs must be borne by the customer.

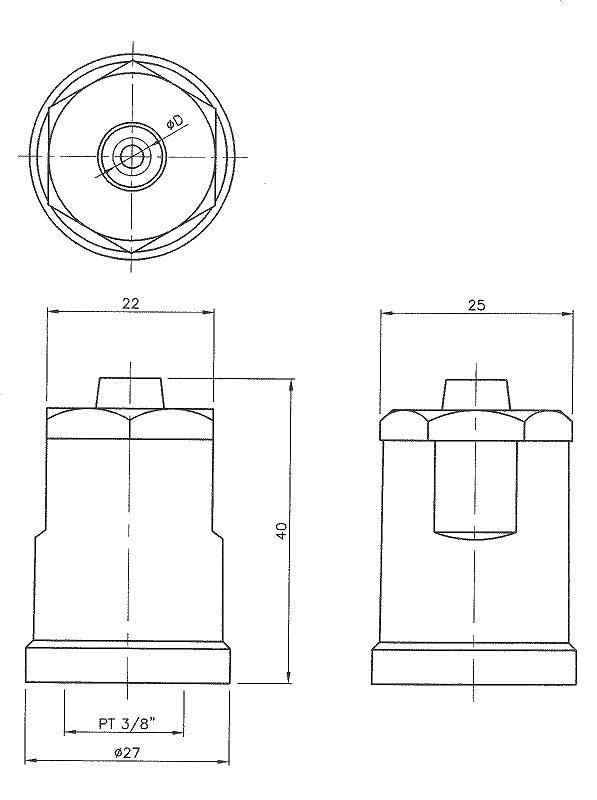

Performance & Dimension
＊Dimension : general tolerancen
＊Performance : All figures in above table are based on actual value tested, but not guaranteed.
※Model designation: S-2x stands for cap type-S with a spray bore diameter of Φ2 mm. The untrailing X is a symbol to distinguish it from the old type name.
