TYPE-SL
TYPE-SL
Detailed Information by Type
Type name： TYPE-SL
Spray shape: Full cone
Spray direction: straight
Mounting screw： 3/4" female screw
Material: PP (Polypropylene)
Applications: Suitable for cleaning, cooling, sprinkling and foam suppression. Also suitable for humidification.
Features
Higher water volume than TYPE-S. Unlike TYPE-S, the body and cap are one piece. A cross vane is built in just before the spray port to create a swirling flow. Please be careful not to get clogged. The atomizing angle is relatively small and the mist particles are coarser and larger than those of hollow cones, so impact force can also be used. Like Type-S, it is suitable for washing, cooling, sprinkling water, and extinguishing foam, as well as for washing off.
Combination
There is no combination as it is an integrated type. The body is stamped "TYPE-S" and there are three types of atomizing port diameters, φ6mm, φ8mm, and φ10mm, but there is no stamp indicating the atomizing port size. The spray angle and water volume vary depending on the size of the spray port.
Type name： TYPE-SL
Spray shape: Full cone
Spray direction: straight
Mounting screw： 3/4" female screw
Material: PP (Polypropylene)
Applications: Suitable for cleaning, cooling, sprinkling and foam suppression. Also suitable for humidification.
Features
Higher water volume than TYPE-S. Unlike TYPE-S, the body and cap are one piece. A cross vane is built in just before the spray port to create a swirling flow. Please be careful not to get clogged. The atomizing angle is relatively small and the mist particles are coarser and larger than those of hollow cones, so impact force can also be used. Like Type-S, it is suitable for washing, cooling, sprinkling water, and extinguishing foam, as well as for washing off.
Combination
There is no combination as it is an integrated type. The body is stamped "TYPE-S" and there are three types of atomizing port diameters, φ6mm, φ8mm, and φ10mm, but there is no stamp indicating the atomizing port size. The spray angle and water volume vary depending on the size of the spray port.
If you would like more than the maximum quantity, please click here.
If you would like more than the maximum quantity, please click here.
Please Contact us.
If you wish to use a shipping method other than EMS
If you wish to use a shipping method other than EMS
If you would like to use a shipping method other than EMS, please Contact Us.
Worldwide Shipping
Worldwide Shipping
In addition to the shipping fee, customs duties and customs clearance fees may apply, and these additional costs must be borne by the customer.

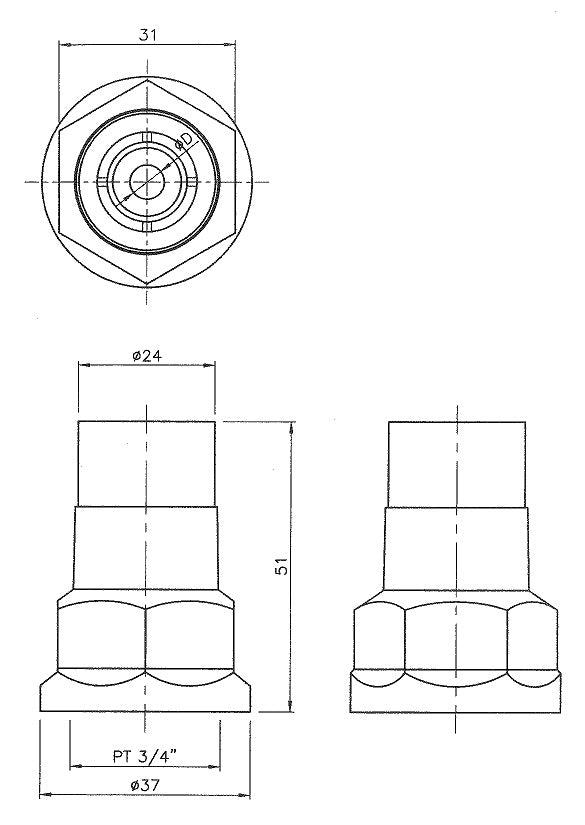

Performance & Dimension
＊Dimension : general tolerancen
＊Performance : All figures in above table are based on actual value tested, but not guaranteed.
※Model designation: SL-6x stands for Type-SL with a spray bore diameter of Φ6mm.
